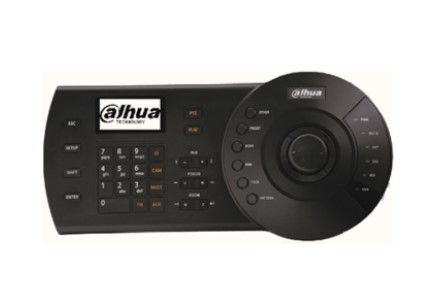

Tastiera seriale/IP di controllo speed dome e DVR, joystick a 3 assi, display LCD, 1 porta RS232, 2 porte RS485, 1 porta LAN RJ45, alimentazione 12 Vdc <5 W
Datasheet
Manuali
| Model | |
| Model | NKB1000-E |
| General | |
| Keyboard Key panel | Electromechanical 3-axis, vector-solving, with twisting, return to-center head |
| Keyboard Connector | RJ-45, RS232, RS485, RS422 (reserved), USB |
| Keyboard | Direct Mode, Network Mode |
| Communication | Interface: 1 RS232/2 RS485 |
| Direct Mode | DVR Protocol: DH-2 Dome Protocol: DH-SD1/PELCO-D/PELCO-P, etc Interface: RJ45 |
| Network Mode | DVR/Network Dome: IP Address/Port/Protocol |
| Display | |
| Maximum Number of | 64 (including "admin") |
| Max RS485 Addresses | 256 |
| That Can be Added over | 2048 |
| Environmental | |
| Power Supply | DC12V/2A |
| Power Consumption | 5W |
| Working Temperature | -10 ~+55 ℃ ℃ |
| Working Humidity | 10% ~ 90% |
| Atmosphere Pressure | 86kpa~106kpa 330mm×139mm×53mm (W×D×H)(height: 103mm including |
| Dimension | joystick) |
| Weight | 1.3kg (Including package) |
