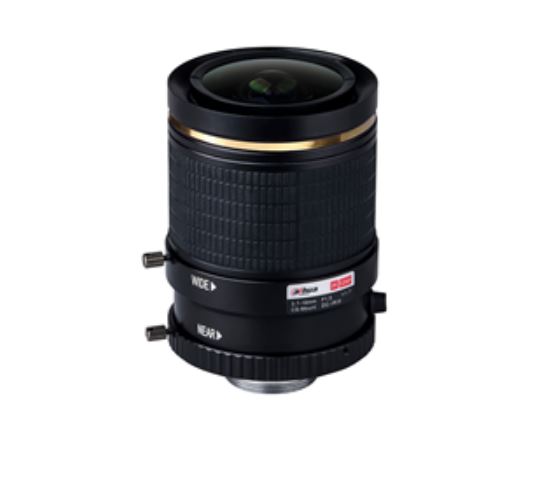

Ottica varifocale 3.7~16 mm 12 MP
Ottica varifocale 3.7~16 mm ƒ1.5 da 12 MP, sensore immagine 1/1.7", CS mount, Iris P, fuoco manuale
Datasheet
| Image Sensor Size | 3.7 mm–16 mm |
| Focal Length | 12MP |
| Pixel | F1.5 |
| Max. Aperture | Yes |
| IR Correction | 11° (W)–9° (T) |
| Chief Ray Angle (CRA) | 95.35 mm (3.75") |
| Total Optical Length | 12.5 mm (0.49") |
| Flange Back Focal Length | 7.45 mm (0.29") |
| Mechanical Back Focal Length | 1/1.7": W: 146° × 109° × 79° (Diagonal × Horizontal × Vertical) T: 36° × 29° × 22° (Diagonal × Horizontal × Vertical) |
| Field of View | 1/1.8": W: 136° × 114° × 61° (Diagonal × Horizontal × Vertical) T: 34° × 30° × 17° (Diagonal × Horizontal × Vertical) –28.8%W to –2.5%T (1/1.7") |
| Distortion | –27.1%W to –2.3%T (1/1.8") |
| Minimum Object Distance | 0.5 m (1.64 ft) |
| Zoom | Manual |
| Focus | Manual |
| Iris | P-iris |
| Mount Type | CS mount |
| General | |
| Product Dimensions | Ø54.0 mm × 87.35 mm (Φ2.13" × 3.44") |
| Color | Black |
| Casing | Metal |
| Net Weight | 0.27 kg (0.60 lb) |
| Gross Weight | 0.33 kg (0.73 lb) |
| Packaging Method | 40 pcs in each carton Inner carton: 126.0 mm × 87.0 mm × 78.0 mm |
| Packaging Dimensions | (4.96" × 3.42" ×3.07") (L × W × H) |
| Operating Temperature | –30°C to +70°C (–22°F to +158°F) |
| Operating Humidity | 10%-95% (RH) |
| Storage Temperature | –30°C to +70°C (–22°F to +158°F) |
| Storage Humidity | 10%-95% (RH) |
| Ordering Information | |
| Type | Dahua 12MP 1/1.7" 3.7-16 mm DH-PLZ20C0-P HD Vari-focal Lens (P-iris) |
| HD Vari-focal Lens | General 12MP 1/1.7" 3.7-16 mm PLZ20C0-P HD Vari-focal Lens (P-iris) The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
