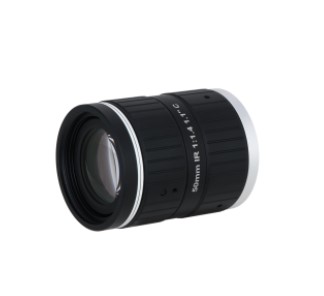

Ottica fissa 50 mm 12 MP
Ottica fissa 50 mm da 12 MP, apertura F1.4 ±10%, sensore immagine 1.1", C mount, Iris e fuoco manuale, ideale per telecamere ITC
Datasheet
| Performance | |
| Image Sensor Size | 1.1" |
| Focal Length | 50 mm |
| Lens Pixel | 12 MP |
| Aperture | F1.4 ± 10% |
| IR Light | Yes |
| CRA | 10.3° |
| Total Optical Length | 84 mm ± 0.5 mm (3.31" ± 0.02") (in air) |
| Flange Back Focal Length | 17.53 mm ± 0.2 mm (0.69" ± 0.01") (in air) |
| Mechanical Back Focal Length | 9.87 mm ± 0.2 mm (0.39" ± 0.01") (in air) 1.1": 20.9° × 17.2° × 11.6° (@17.56 × 14.47 × 9.94 mm) |
| Field of View | 1": 18.7° × 16.5° × 8.7° (@16.1 × 14.13 × 7.45 mm) |
| Distortion | –1.3% |
| Minimum Object Distance | 1 m (3.28 ft) |
| Control Mode | |
| Zoom | Fixed |
| Focus Control | Manual |
| Iris Control | Manual |
| Port | |
| Port Type | C mount |
| Structure | |
| Product Dimensions | Ф56 mm × 80.2 mm (Ф2.2" × 3.16") |
| Appearance Color | Black |
| Casing | Metal |
| Net Weight | 0.335 kg ± 0.005 kg (0.74 lb ± 0.01 lb) |
| Gross Weight | 0.4 kg ± 0.010 kg (0.88 lb ± 0.02 lb) |
| Packaging Method | 30 pieces in one carton Package: 124 mm × 82 mm × 89 mm (4.88" × 3.23" × 3.5") (L × W × H) |
| Packaging Dimensions | Protection box: 265 mm × 265 mm × 470 mm (10.43" × 10.43" × 18.50") (L × W × H) |
| Environment | |
| Operating Temperature | –30 °C to +70 °C (–22 °F to +158 °F) |
| Operating Humidity | ≤ 95% (RH) |
| Storage Temperature | –30 °C to +70 °C (–22 °F to +158 °F) |
| Storage Humidity | ≤ 95% (RH) |
| Ordering Information | |
| Type | Model Description Dahua 12 MP 1.1" F1.4 50 mm |
| HD Fixed-focal Lens | DH-PFL50-L12M-AIR Fixed-focal Lens 12 MP 1.1" F1.4 50 mm Fixed- |
| HD Fixed-focal Lens | PFL50-L12M-AIR focal Lens |
| Dimensions (Mm[Inch]) | |
| 18° | 1-32UN-2A 72.1 [2.84] |
